Shield RMSc footprint standard

February 18, 2025

Which red dots will you be able to mount on the ,mount with RMSc or Shield RMSc footprint? Will you be able to install Sig Sauer Romeo Zero on the same plate as Shield RMSc? We cover the full compatibility of Shield RMSc footprint in this article.

Footprint compatibility explained

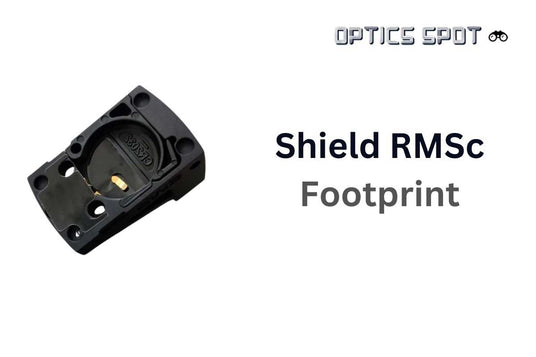

What does a "footprint" mean? The term footprint refers to a sctructure of the sockets and screw holes on the base of the optic device.

And what does it mean if the footprints are compatible?

Each optic sight has some base for mounting. The base consists of pins on various positions and holes for screws used for fixation of the sight to the mounts. If any two sights use the same base for mounting, we call that that they share the same footprint.

In this article we show which red dot sights share the same footprint.

Shield RMSc footprint pattern

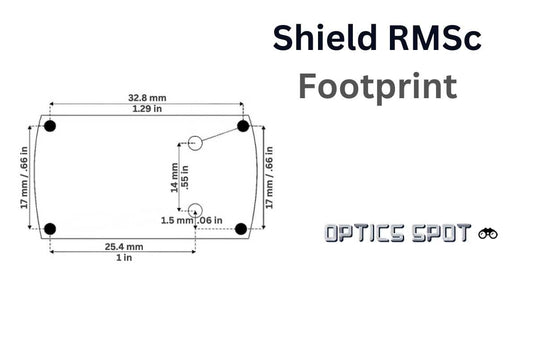

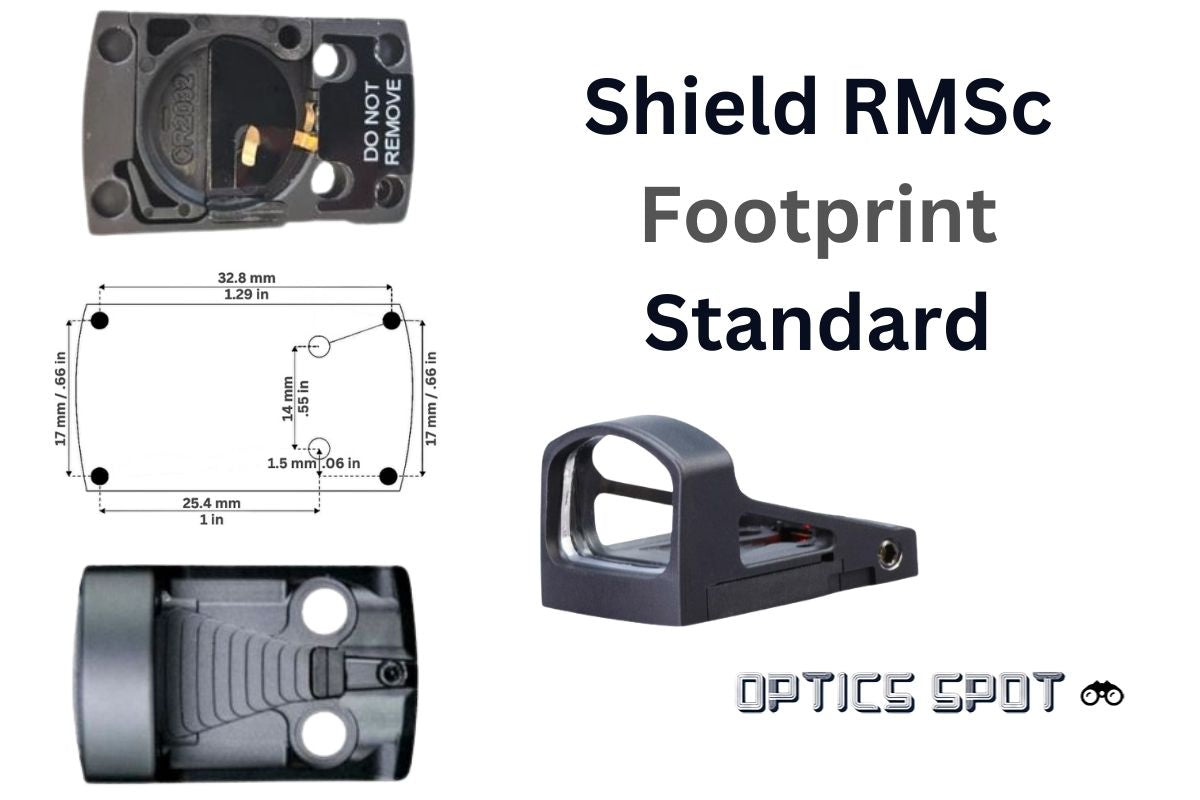

Shield RMSc footprint consists of four sockets in the corners of the sight and of two screw holes in the rear of the sight.

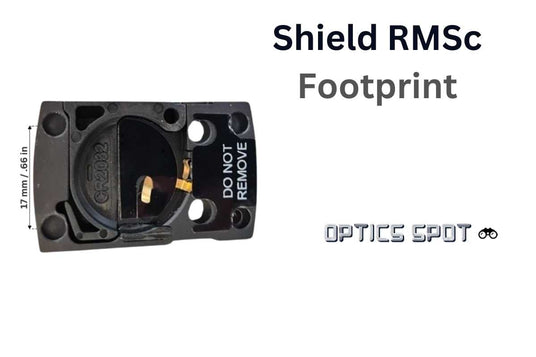

The front as well as the rear socketes are 17mm / 0.66 inches far from each other. From the rear sockets to the front sockets the distance is 32,8mm / 1.29 inches. Position of these four sockets corresponds to position of pins that are on a mounting surface of any mount for this standard.

The screw holes are positioned in the rear part of the optic device. These function for fixation of the sight to the mounts. These two screw holes are 14mm / 0.55 inches far from each other.

The screws that are to be used for these screw holes are always included in the package with the sight.

Compatible red dots

The RMSc footprint is shared by many other manufacturers on the market.

Below you can find complete list of red dot sights that will work with Shield RMSc footprint.

Shield RMSc standard

ADE Advanced Optics RD3-018 Spike,
ADE Advanced Optics RD3-021 Nuwa,
JPoint MRD,
Shield AMS,
Shield AMSc,
Shield OMSsc,
Shield SMS,
Shield SMS2,
Shield SMSc,
Shield RMS,
Shield RMS2,
Shield RMSc,
Shield RMSsc,
Shield RMSd,
Shield RMSw,
Shield RMSx,
Sig Sauer Romeo Zero,
Sightmark Mini Shot A-Spec M3,
Swampfox Sentinel 1×16,
UTG OP3 Mini Micro,
Vector Optics Frenzy-S 1x16x22,
Vector Optics Frenzy-S 1x17x24 MIC,
Vector Optics Frenzy-S 1x17x24 SID,
Vector Optics Frenzy-S 1x17x24 MOS Multi Reticle,
Vortex Defender CCW

Vector Optics Frenzy-S 1x17x24 MOS Multi Reticle red dot

(1)

€189,00 EUR

Low stock (9 units)

View details
Vortex Defender CCW

(1)

€320,00 EUR

Low stock (19 units)

View details
Sold out

Vector Optics Frenzy-S 1x17x24 SAS

€159,00 EUR

View details
Vector Optics Frenzy-S 1x17x24 MIC

(1)

€139,00 EUR

Very low stock (6 units)

View details
Vector Optics Frenzy-S 1x17x24 MIC [green]

€199,00 EUR

Very low stock (1 unit)

View details
Shield RMSx [Glass]

€516,00 EUR

In stock

View details
Sold out

Shield AMSc

€612,00 EUR

View details
Sold out

Shield AMS

€648,00 EUR

View details

How to mount red dot with Shield RMSc footprint

It depends on what device you want to mount it.

Will you install it on a a picatinny mount? I.e. gun equipped with picatinny rail? Then you need to look for picatinny mount with Shield RMSc footprint.
Or will you mount it on a pistol? And will the pistol be optics ready (with pistol slide cut for red dot). Then you need to look for red dot mount with Shield RMSc footprint.
Or will it be standard pistol without such cut? Then you need to look for optic plate with Shield RMSc footprint.

Other footprint standards

There are many different bases for red dot sights, but the other most common are following:
