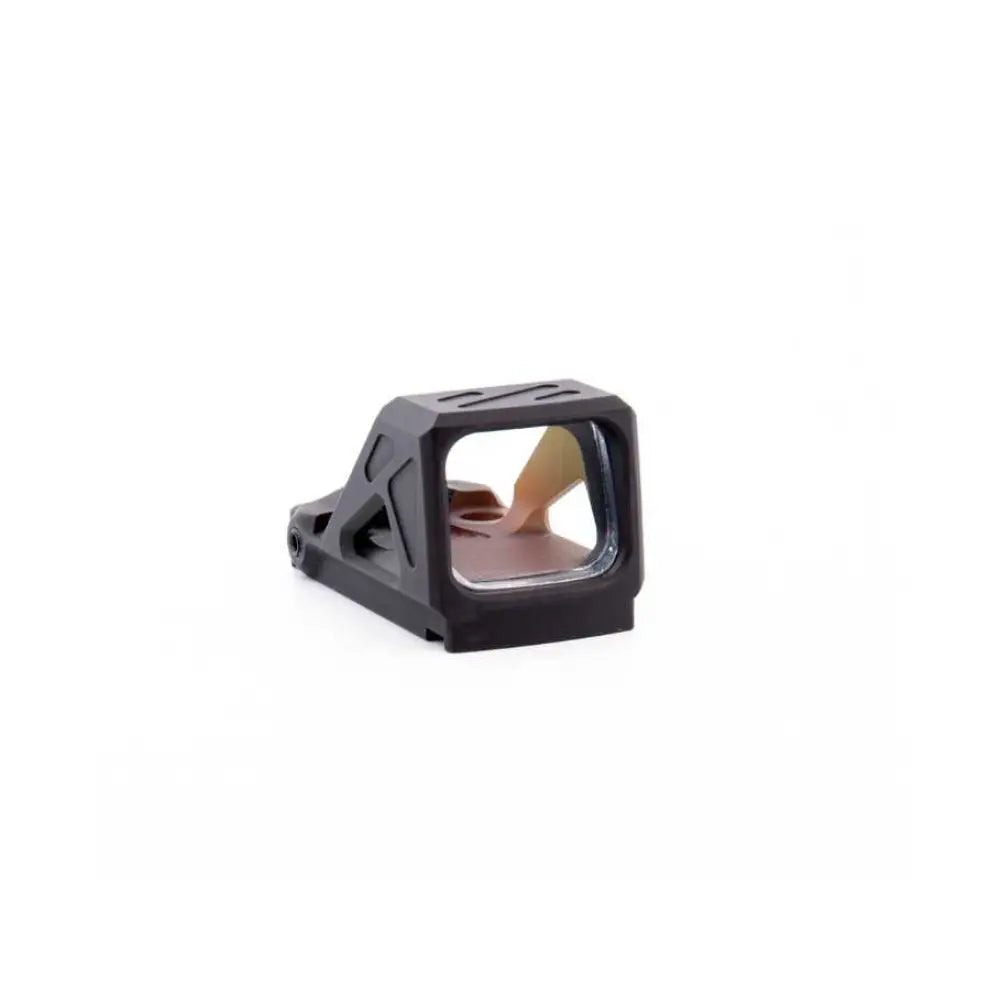

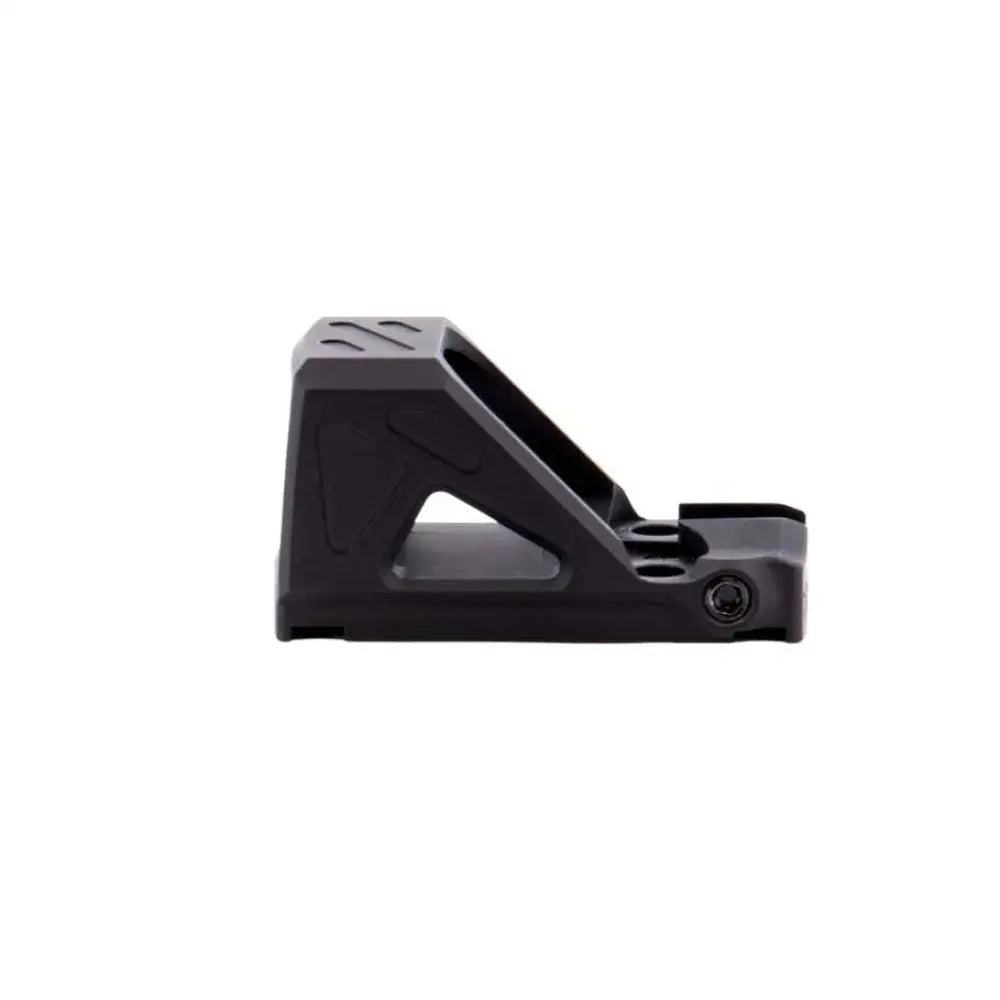

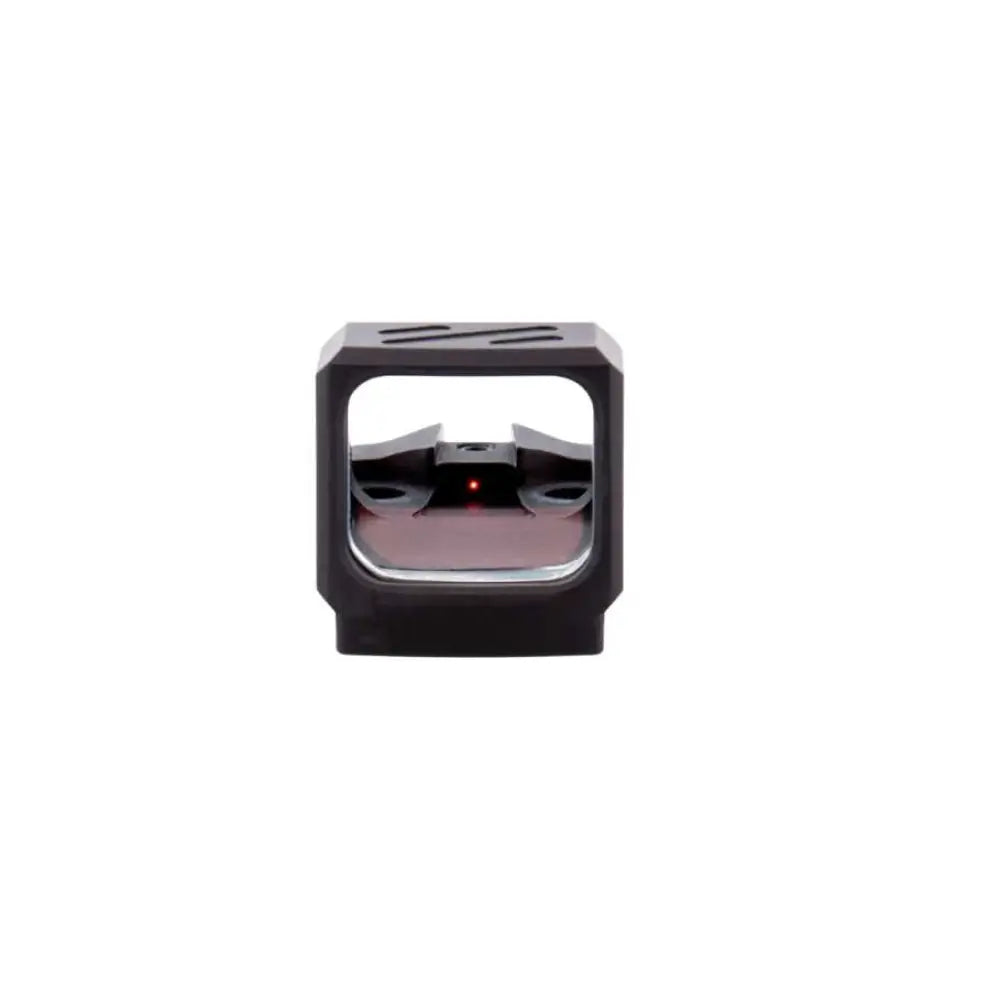

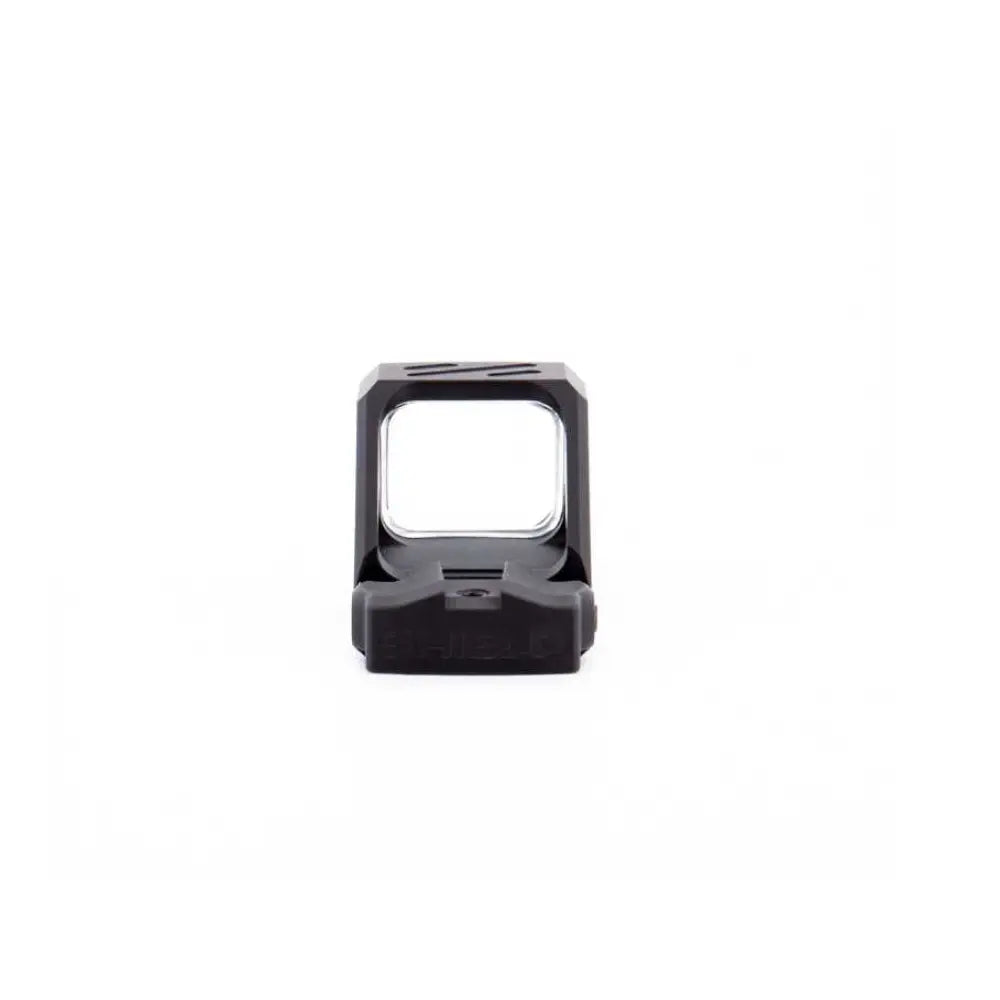

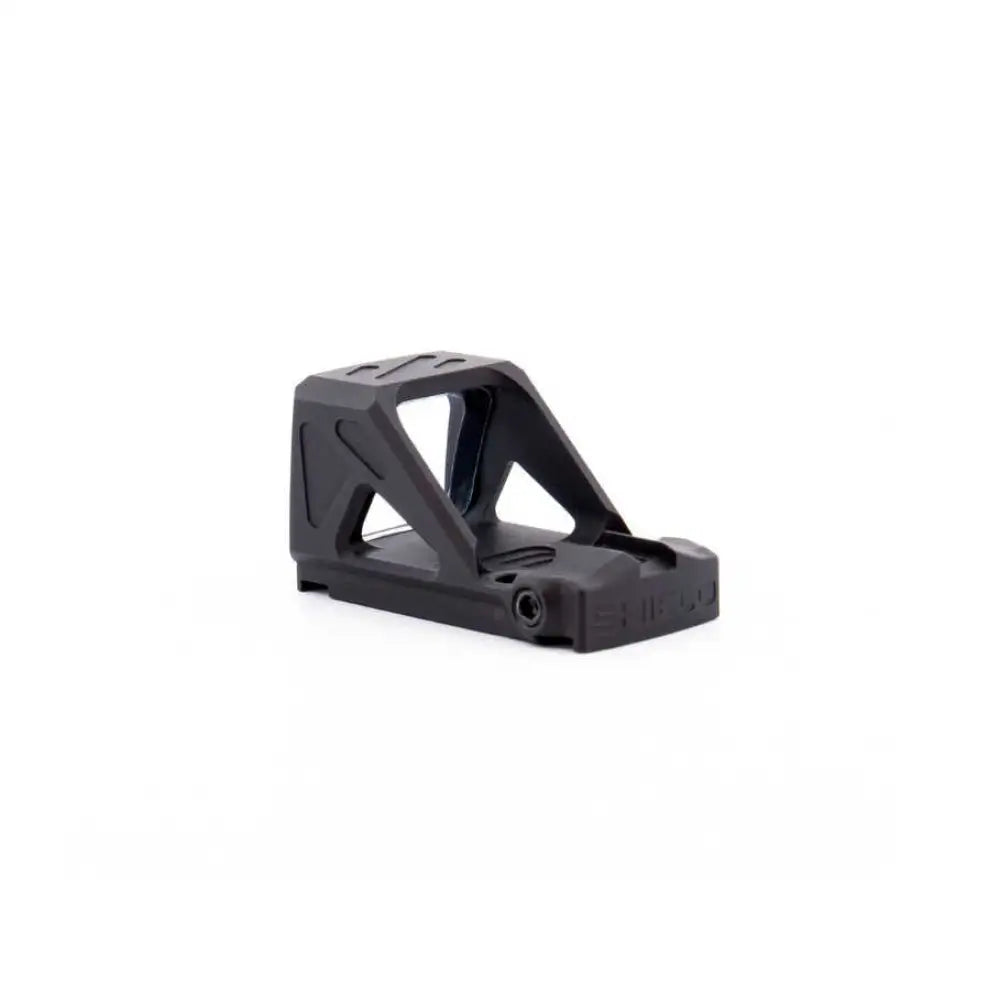

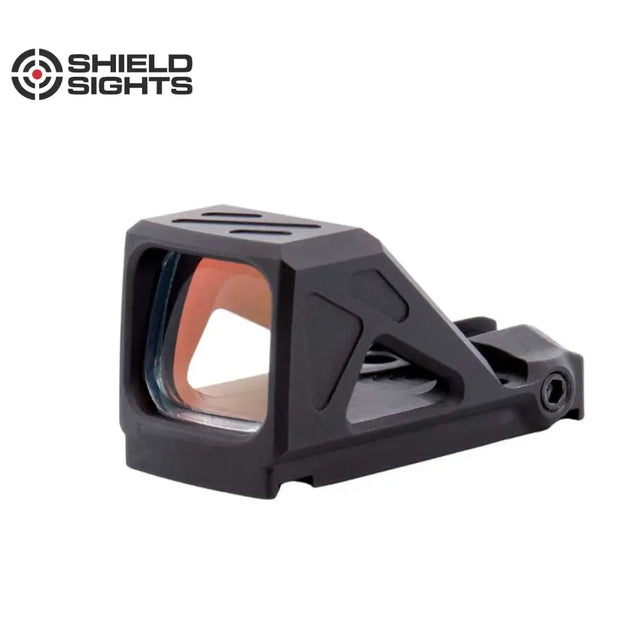

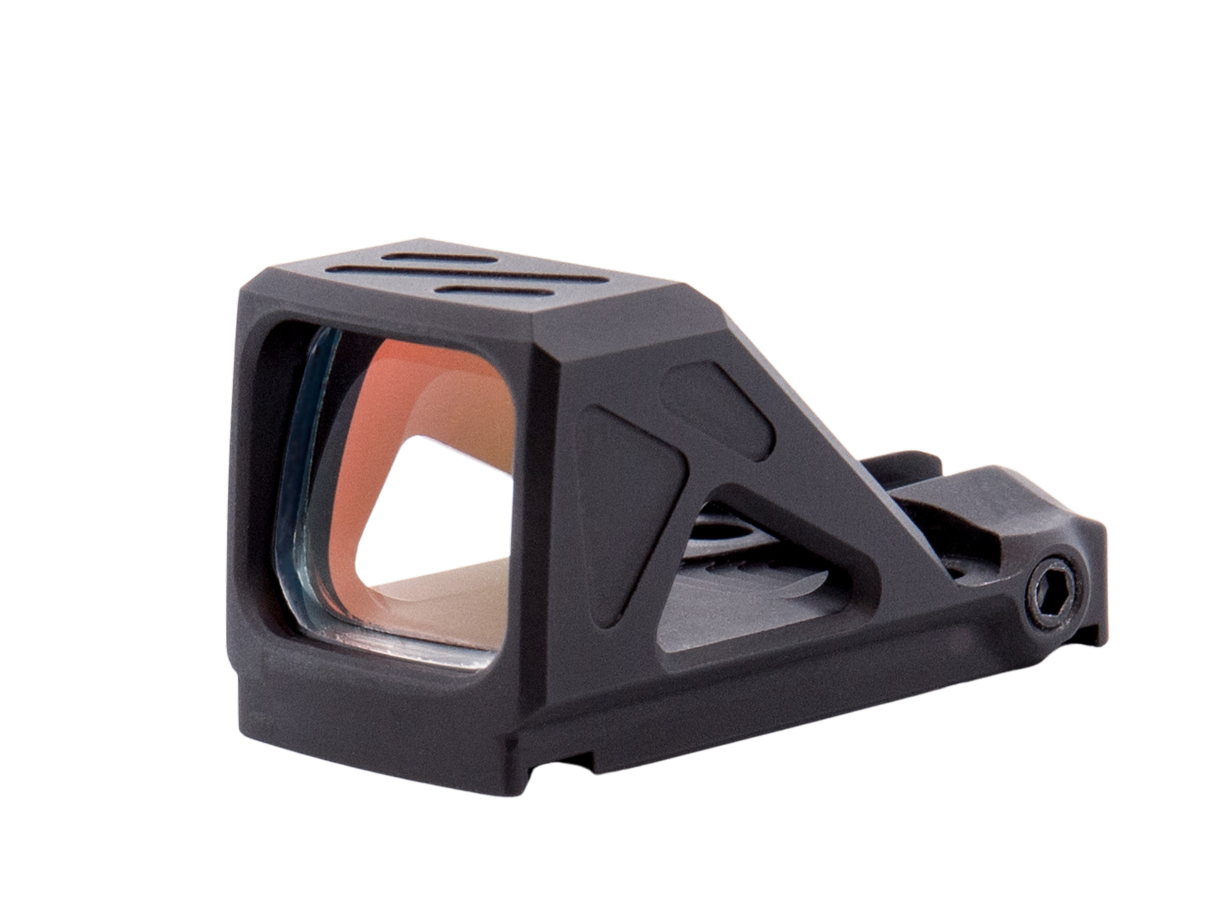

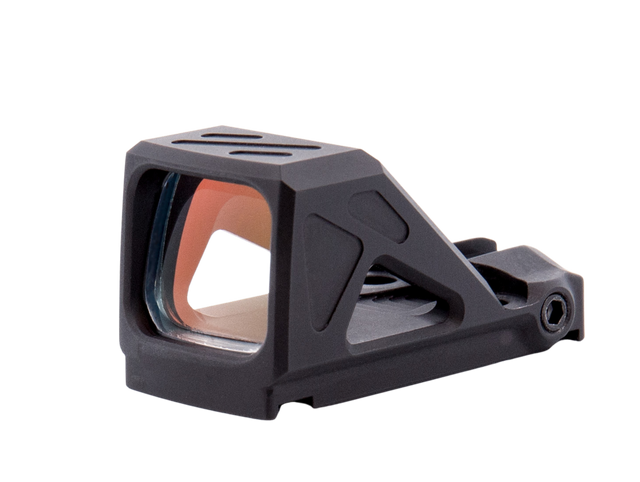

Shield RMSsc [Glass]

RMSSC-4MOA-GLASS
€468,00 EUR
Tax included Shipping calculated at checkout.


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

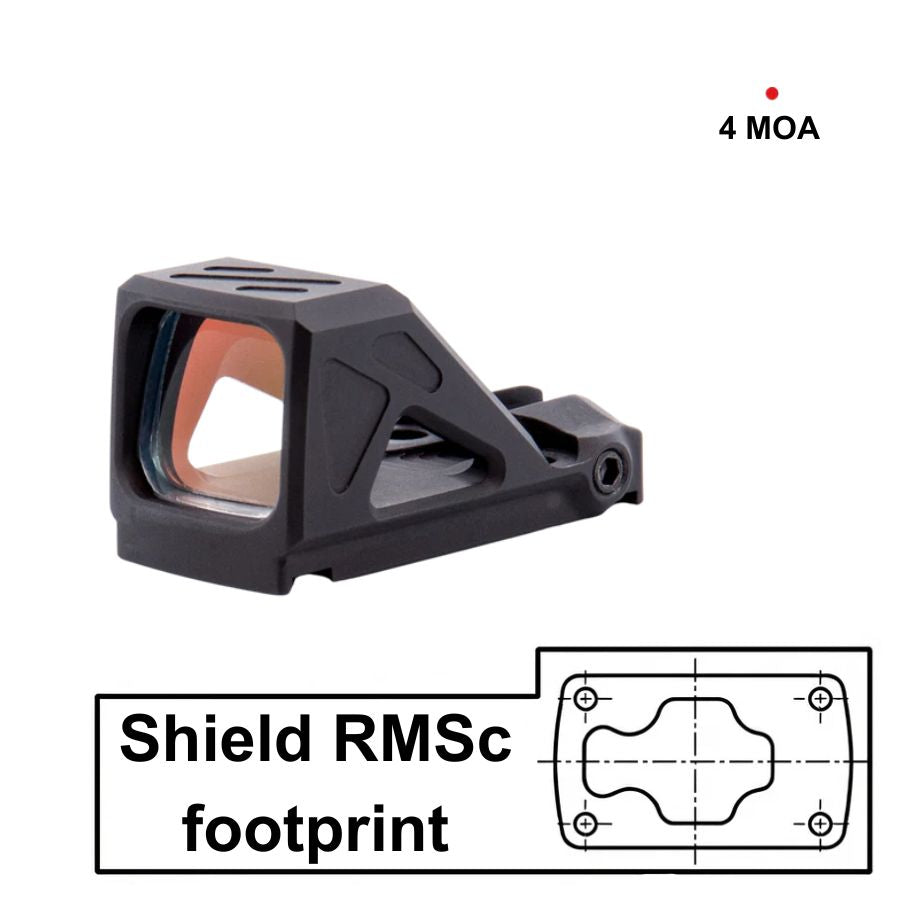

This red dot uses the Shield RMSc footprint standard.

In keeping with SHIELDs continuous efforts to advance red dot innovation and design, we are proud to announce the release of the RMSsc, the first in a new line of Micro Compact red dots designed for concealed carry and small form factor handguns.

The RMSsc follows the SHIELD ethos of fit form and function offering EDC and CCW users new levels comfort and concealability whilst retaining all the core SHIELD product features.

Designed from the ground up with size and concealability in mind , the new body  promotes minimal drag and print signature. Ease of use allows the user maximum situational response time and removal of controls decrease potential failure points.

All whilst retaining our standard SHIELD footprint in one of the best looking products on the market.

SHIELD core characteristics –

  • SHIELD standard footprint – allowing backwards and forwards compatibility across our entire range of pistol based optics
  • Smallest Micro red dot optic on the market – ease of concealment, low drag body design allowing rapid draw and sight presentation

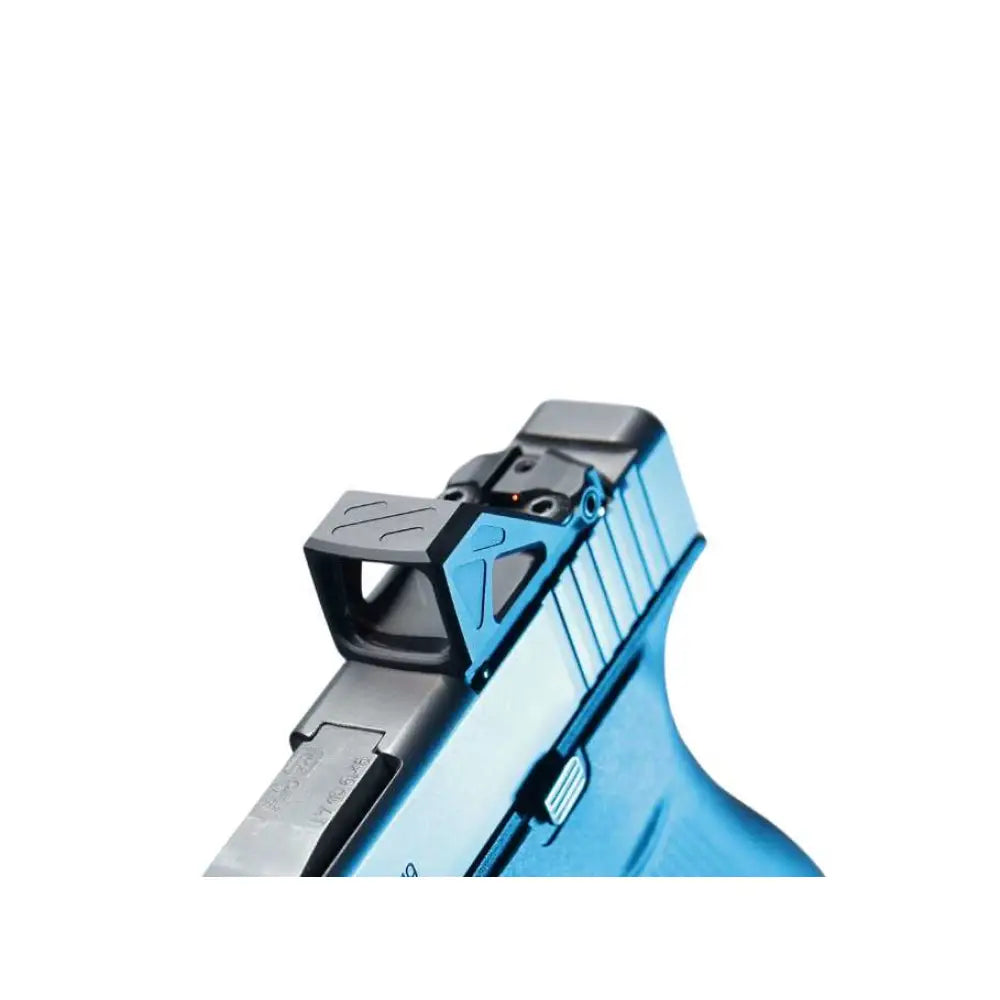

  • Low height over bore axis – allowing co-witness capability with standard height iron sights when installed on a direct slide mount or using our low profile mounting kit
  • Always on – no need to shake awake or activate using a button, simply draw, aim and shoot
  • Auto brightness adjustment – photo diode samples the ambient light thousands of times per second meaning one less thing to think about in a critical situation
  • Minimal frame design – allows unobstructed field of view to allow maximum situational awareness

Technical Specifications

Optical Characteristics

  • Light Source: Red light emitting diode (LED) No laser; completely eye safe. No radioactive materials.
  • Red Dot Size Options: 4MOA, Lens Reflex x1 (no magnification) Parallax-free, crystal clear glass lens.
  • Lens Coating: Anti reflective colour free coating minimizes visible signature.
  • Lens Shape: Lens shape square (W x H) 17.35mm x 14.35mm / 0.68” x 0.56“

Electronics

  • Battery: CR1632 3V lithium metal battery.
  • Battery Fitting: Underside location.
  • Battery Life: 9000 hours in average daylight with a CR1632.
  • Brightness Range: Lowest – compatible with night vision. Highest – visible against the sky in bright daylight.

Exterior

  • Housing material: Anodized aerospace grade aluminium (6082 T6).
  • Colour: Matte black.
  • Dimensions:  Sight (L x W x H) 40.8mm x 19mm x 21.5mm / 1.60” x 0.74“ x 0.84”).
  • Weight: 16.1 grams / 0.56 ounces without battery.
  • Mount: The SHIELD Footprint – 100+ Mounting solutions.
  • Water immersion: IP67

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shield Sights

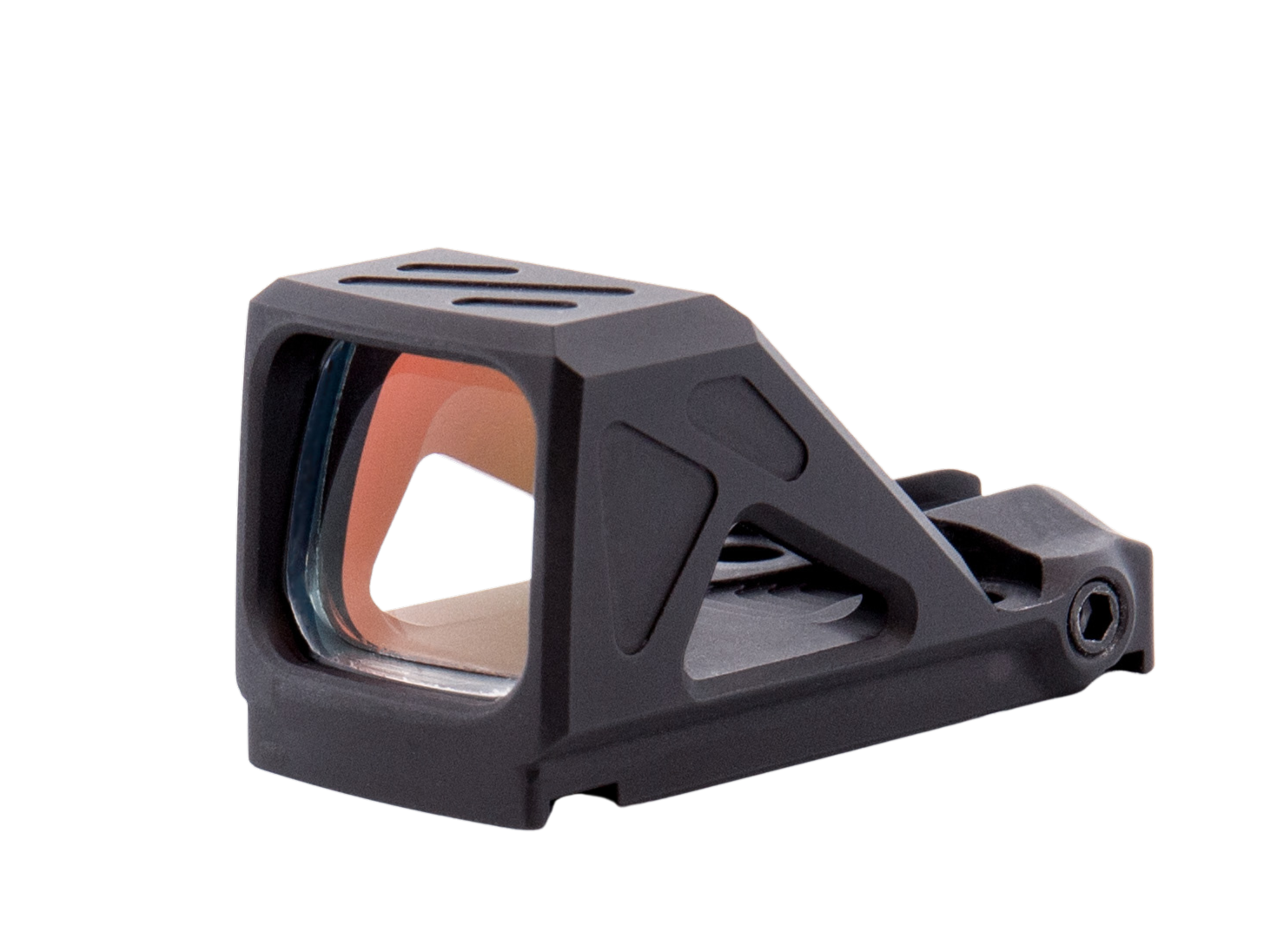

Shield RMSsc [Glass]
